Hello,
would your circuit work for RGsB to VGA, 1280x1024 resolution,
to connect an old digital workstation to a TFT?
thank you!
best regards
Gunter
20 Jun
20 Jun
1:29 p.m.
I have used it to convert "sync on green" RGB at NTSC rates to a separate
sync for input to a scan doubler (such as the "CGA to VGA" board previously
discussed. Although I don't have the circuit in front of me, I think it was
as simple as using G as the "composite" input to the LM1881.)
On Thu, Jun 19, 2008 at 3:56 AM, gii dii <giidii at gmail.com> wrote:
Hello,
would your circuit work for RGsB to VGA, 1280x1024 resolution,
to connect an old digital workstation to a TFT?
thank you!
best regards
Gunter
1:56 p.m.

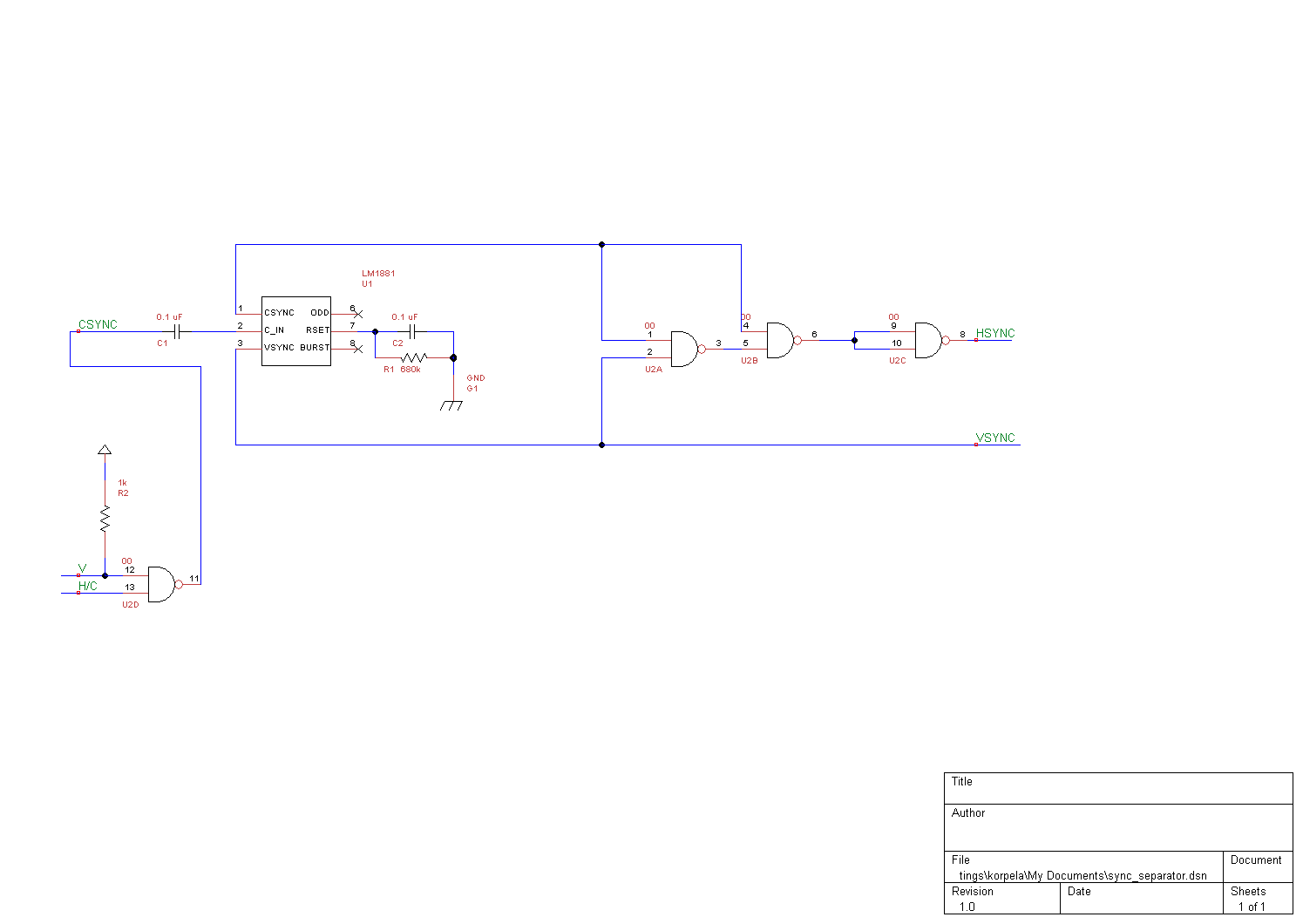

The sync separator portion of the board is at
http://setiathome.berkeley.edu/~korpela/sync_separator.png, and it's
unforunately the only portion I have on this machine.
Sorry for the large size. So I think the drill is connect R directly to
H/C, although its possible the some initial conditioning (an inverter or
comparator) was required. It's been a while since I thought a lot about
that board. If I were to do it today I might switch to an LMH1980, which
supports more input formats.
ePanorama.net is a good source for a lot of video circuits.
Eric
On Fri, Jun 20, 2008 at 10:29 AM, Eric J Korpela <korpela at ssl.berkeley.edu>
wrote:
I have used it to convert "sync on green" RGB at NTSC rates to a separate
sync for input to a scan doubler (such as the "CGA to VGA" board previously
discussed. Although I don't have the circuit in front of me, I think it was
as simple as using G as the "composite" input to the LM1881.)
On Thu, Jun 19, 2008 at 3:56 AM, gii dii <giidii at gmail.com> wrote:
Hello,
would your circuit work for RGsB to VGA, 1280x1024 resolution,
to connect an old digital workstation to a TFT?
thank you!
best regards
Gunter
