29 May
2014
29 May
'14
9:13 a.m.
Hi,
yesterday i got a complete MAI Basic Four 510, similar to the 610/730
including 2 14" removable disk drives including a lot of disk packs. Due
to the size i have yet transported one drive, the printer, terminals,
disk packs and the documentation only. I have to pick up the CPU, the
2nd drive and the remaining stuff over the next weeks.
Now i'm looking for the service manual since there seems to be a defect
in the cpu power supply, the main fuse is blowed:
M8001XX System 610/730 Service Manual
Anyone out there having these or similar manuals ?
These ones would also be very interesting:
M80651A System 1350 Service Manual, Vol I
M80652A System 1350 Service Manual, Vol II
M80781A System 1600 Service Manual, Vol I
M80782A System 1600 Service Manual, Vol II
The new ones i got (Disk service manual and owners manual for the
610/730) will be scanned and send to Al within the next weeks.
Thanks
----------------
Gr?sse
Armin Diehl
ad at ardiehl.de
6 Jun
6 Jun
3:23 p.m.
Anyone out there having these or similar manuals ?
On the topic of MAI Basic Four machines, I obtained a desktop-ish model
a while back with some terminals, and wondering what is known about
these and if anyone has an interest towards these systems. It appears
the one I have is a 68k based one, maybe model 2000 or 3000 according to
the little I found out about them.
I have no manuals, software or documentation, but I was told the system
was operational when shut off. There is very little out there about
these machines.
Would love to hear from anyone who knows about these, let alone perhaps
has run one in the past or still has one.
7 Jun
7 Jun
6:24 p.m.
Hi Michael,
the 3000 was not a "desktop-ish" model:
http://www.ardiehl.de/basicfour/pics/MAI_Basic_Four_3000.jpg

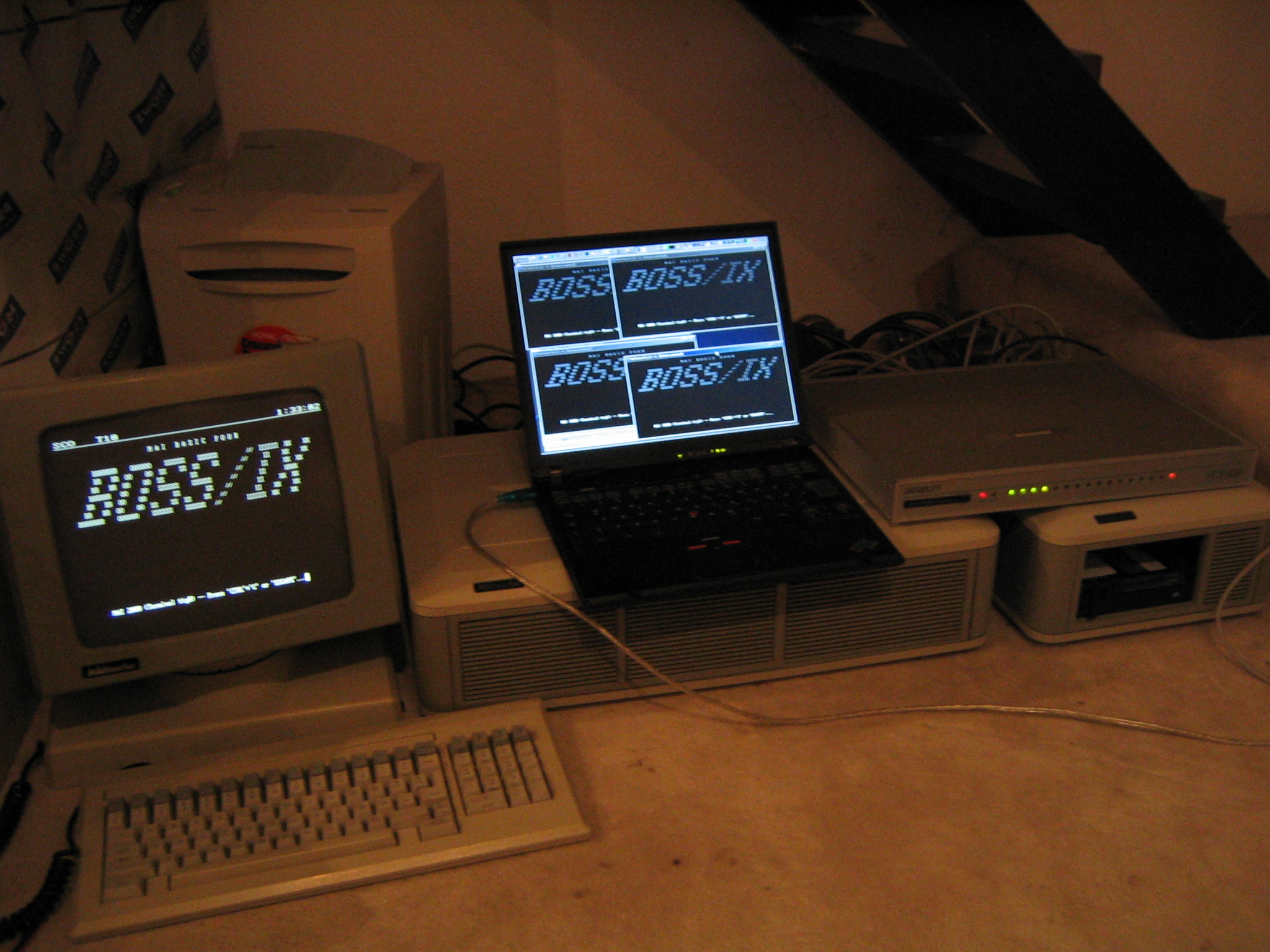

if it is a 2000, here are some pics:
http://www.ardiehl.de/basicfour/eagle/pics/IMG_2081.JPG
http://www.ardiehl.de/basicfour/eagle/pics
I have a running 2000 but missing some software like the c, pascal and
cobol compiler. Would like to know if your one is a 2000.
Started to write an emulator for that machine some time ago (will boot
the diags from tape, disk controller not yet working). I would like to
continue this project in case i get more software for the 2000 (btw,
based on Charles River Data Systems UNOS)
On 06/06/2014 09:23 PM, Michael Lee wrote:
--
----------------
Gr?sse
Armin Diehl
ad at ardiehl.de
Anyone out there having these or similar manuals
?
On the topic of MAI Basic Four machines, I obtained a desktop-ish
model a while back with some terminals, and wondering what is known
about these and if anyone has an interest towards these systems. It
appears the one I have is a 68k based one, maybe model 2000 or 3000
according to the little I found out about them.
I have no manuals, software or documentation, but I was told the
system was operational when shut off. There is very little out there
about these machines.
Would love to hear from anyone who knows about these, let alone
perhaps has run one in the past or still has one.
8:42 p.m.
On 6/7/2014 5:24 PM, Armin Diehl wrote:
if it is a 2000, here are some pics:
http://www.ardiehl.de/basicfour/eagle/pics/IMG_2081.JPG
http://www.ardiehl.de/basicfour/eagle/pics
I have a running 2000 but missing some software like the c, pascal and
cobol compiler. Would like to know if your one is a 2000.
It is most definitely a 2000 then, and the terminal looks about the same
as well. I'm unsure what the machine would have on it as I've never
powered it on. It was used in a warehouse for order management and
inventory from what I understand, so it may not have development
software if it boots up at all.
If I do attempt to boot it up, any tips on what to do or not to do?
Do you know if the terminals and serial ports are standard RS232, vt100
compatible?
10 Jun
10 Jun
2:43 p.m.
Hi Michael,
On 06/08/2014 02:42 AM, Michael Lee wrote:
On 6/7/2014 5:24 PM, Armin Diehl wrote:
I would try it
first with power disconnected from the harddisk(s).
if it is a 2000, here are some pics:
http://www.ardiehl.de/basicfour/eagle/pics/IMG_2081.JPG
http://www.ardiehl.de/basicfour/eagle/pics
I have a running 2000 but missing some software like the c, pascal
and cobol compiler. Would like to know if your one is a 2000.
It is most definitely a 2000 then, and the terminal looks about the
same as well. I'm unsure what the machine would have on it as I've
never powered it on. It was used in a warehouse for order management
and inventory from what I understand, so it may not have development
software if it boots up at all.
If I do attempt to boot it up, any tips on what to do or not to do?
Do you know if the terminals and serial ports are standard RS232,
vt100 compatible?
They are all standard rs232 but not vt100. They used an emulation
similar to an old ADM (the ones with ESC = xy, for set cursor pos where
x and y is a char with offset 0x20)
For booting the system you can use a vt100 as well. I have scanned the
service manual and some other docs, they are on bitsavers/mai. In
addition i have the diag tapes and eprom contents of my machine at
http://www.ardiehl.de/basicfour/download
You should see something like this (this is a boot of the diags on my
(not yet finished) emulator), this is a diag boot from tape, your one
should boot from wd0. Pressing control z drops you to the debugger, the
boot command allows you to select a boot device, config will start the
config prog where you can set the boot device permanently:
MAI Basic Four Inc.
MAI 2000
System Self Test B4.3: SSN 2000-97894
cmb pass
memory [size=1536 kbytes] pass
fd pass
wd [modules= 0] pass
cs pass
Booting from cs0
.........................................................................................................................................................
Boot Complete (mcs)
Currently Sizing
....
NOTICE
THIS SOFTWARE INCLUDES ORIGINAL WORKS OF AUTHORSHIP AND PROPRIETARY
INFORMATION
PROTECTED BY COPYRIGHT AND TRADE SECRET LAWS. THE COPYRIGHT ACT OF 1976
PROVIDES FOR CIVIL LIABILITY AND SEVERE CRIMINAL PENALTIES FOR UNAUTHORIZED
COPYING OR DISCLOSURE OF PROTECTED WORKS. POSSESSION AND USE OF THIS
SOFTWARE
IS RESTRICTED AND SUBJECT TO THE TERMS OF THE MAI BASIC FOUR, INC. LICENSE
AGREEMENT FOR THIS SOFTWARE ("AGREEMENT"). YOU SHALL NOT PUBLISH, REPRODUCE
OR TRANSMIT, IN WHOLE OR IN PART, THIS SOFTWARE IN ANY FORM OR BY ANY MEANS,
WHETHER ELECTRONIC, MECHANICAL, PHOTOGRAPHIC, OR OTHERWISE. YOU SHALL NOT
DISCLOSE, OR FAIL TO MAKE YOUR BEST EFFORTS TO PREVENT THE INADVERTENT
DISCLOSURE OF, THIS SOFTWARE TO ANY THIRD PARTY EXCEPT TO YOUR EMPLOYEES
ON A
NEED-TO KNOW BASIS, WHICH EMPLOYEES YOU SHALL BIND IN WRITING TO THE
TERMS OF
THE AGREEMENT AND BE RESPONSIBLE FOR THEIR COMPLIANCE THEREWITH. IF YOU FAIL
TO ACT IN ACCORDANCE WITH THIS NOTICE AND THE AGREEMENT, YOUR LICENSE TO
THIS
SOFTWARE WILL BE IMMEDIATELY AND AUTOMATICALLY TERMINATED, AND YOU MAY
EXPOSE
YOURSELF TO CIVIL AND CRIMINAL LIABILITY.
COPYRIGHT 1989, REV. 1987 MAI BASIC FOUR, INC. All RIGHTS RESERVED.
MAI AND BASIC FOUR ARE REGISTERED TRADEMARKS OF MAI BASIC FOUR, INC.
<Cr> To Continue..<Esc> To Quit....
