23 Jan
2014
23 Jan
'14
9:20 p.m.
Does anyone here know where I could find a "generic" monitor ROM that
could be tweaked for the target system? I'm looking for something that
would fit in a 4K EPROM.
tnx.
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
11:52 p.m.
On Thu, 23 Jan 2014, dwight wrote:
Or, maybe something like Pigmy Forth.
What processor are you targeting?
I've got an S-100 box that I'm trying to stand up from scratch. The
system is complete, but will not boot from the hard disk and I don't have
any boot media for it. It's an Action Computer Enterprise box of some
sort - it's got a Tarbell 2022 FDC, a Morrow winchester controller, six
CPU cards and a "master" card with the boot ROM on it.
Pics of the machine: http://www.geneb.org/s100

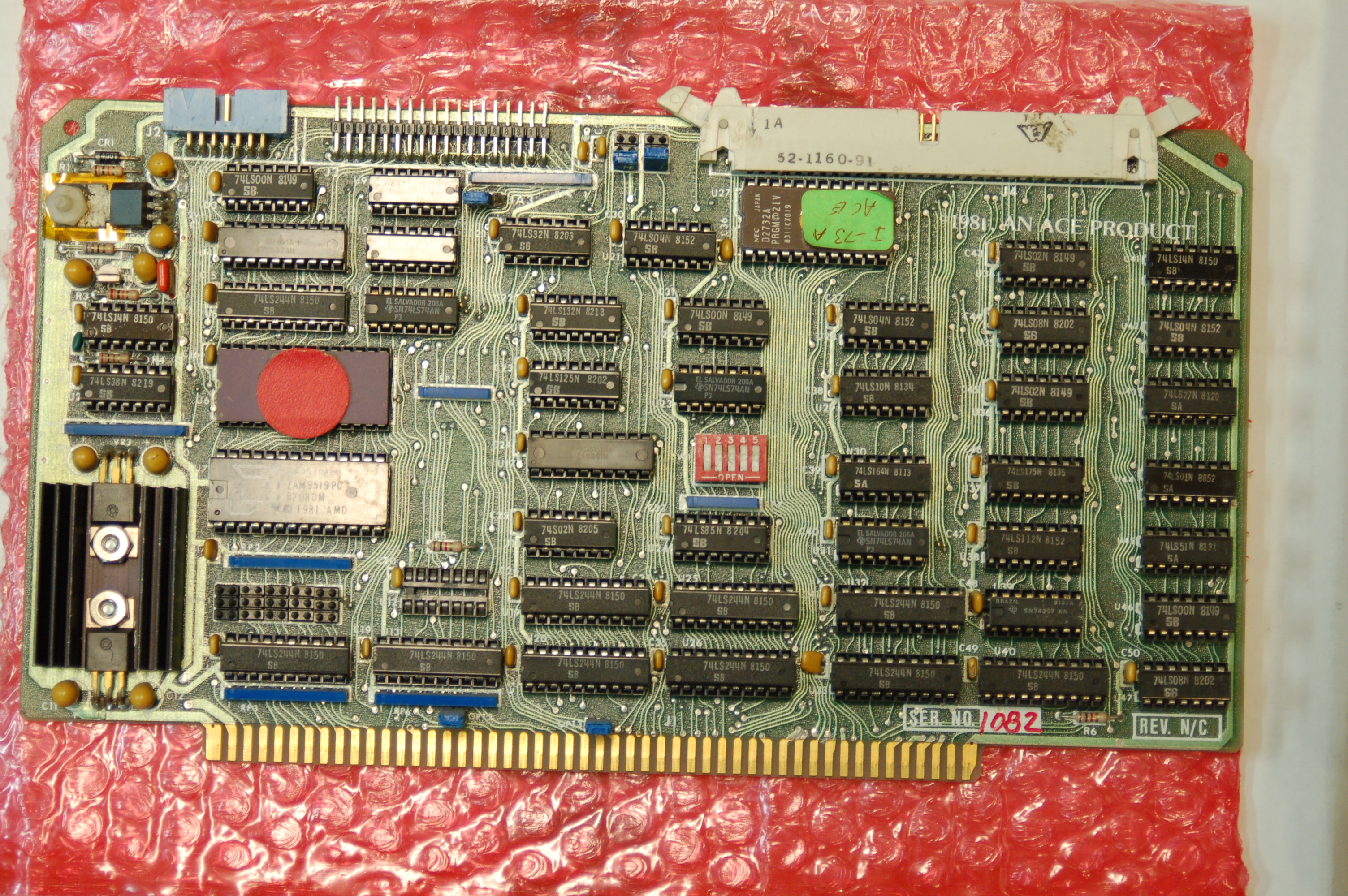

"Master" card: http://www.geneb.org/s100/master-card.jpg BIG image!

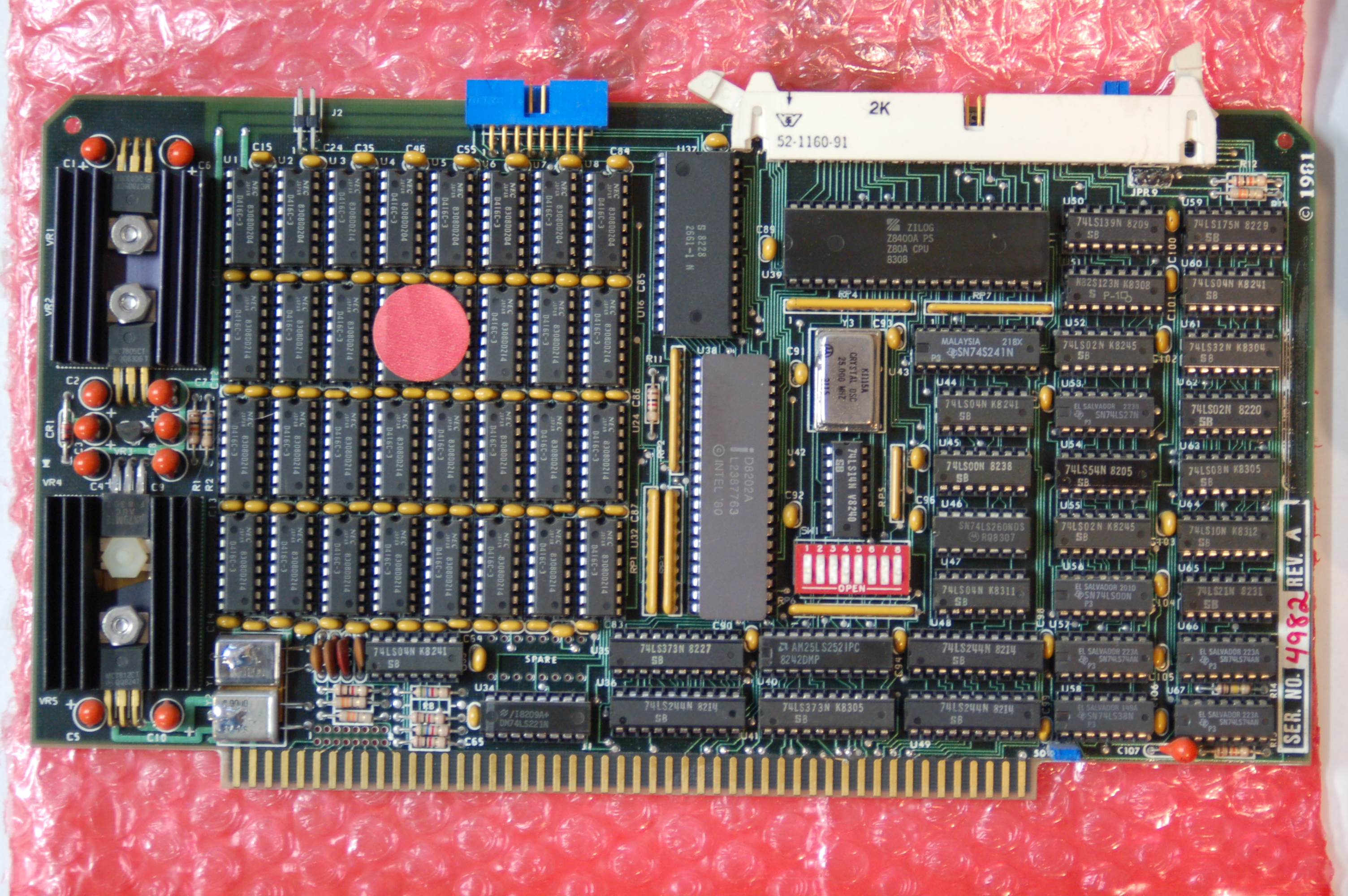

"slave" cpu card: http://www.geneb.org/s100/slave-cpu.jpg BIG image!
Boot ROM: http://www.geneb.org/s100/acerom.bin
I'm going to be able to work out where the console serial port lives, but
if I can't get that ROM out of the 0000h address space it's in right now,
it's a dead project. :(
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
11:20 p.m.
On 1/23/14 2:36 PM, Al Kossow wrote:
On 1/23/14 1:20 PM, geneb wrote:
another one is minimon, looks like it assumes a 765 floppy controller
MINIMON version 9 Readme - Richard Thwaites 22/10/2010
ZIP PACKAGE CONTAINS:
README.1st - THIS FILE
MINIMON9.Z80 - MINIMON SOURCE
MONLIFT.Z80 - LOAD HIGH MODULE SOURCE
SERILOAD.BAT - EXAMPLE DOS BATCH TO SEND USING PRINT
SERILOD1.BAT - EXAMPLE DOS BATCH TO SEND USING COPY
GOMON.CPM - EXAMPLE CP/M COMMAND TO JUMP TO MINIMON
(rename to GOMON.COM ONCE TRANSFERRED TO CP/M
USAGE
Minimon is a tool to assist restoration, operation and maintenance of 8080/Z80
computers independent of an operating system or a working boot device other than
a bootable 2732 EPROM slot or equivalent).
Burned into a boot EPROM, Minimon cold-boots with a self-test sequence
that checks system elements and sends a confirmation character to
console after each test.
Does anyone here know where I could find a
"generic" monitor ROM that could be tweaked for the target system? I'm
looking for something that would fit in a 4K EPROM.
the N8VEM crowd like the Zapple monitor.
24 Jan
24 Jan
3:11 p.m.
On Thu, 23 Jan 2014, Al Kossow wrote:
On 1/23/14 2:36 PM, Al Kossow wrote:
Thanks Al! That may come in handy. I'd have to swap out the 765 code for
Tarbell, but that shouldn't be too painful.
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
On 1/23/14 1:20 PM, geneb wrote:
another one is minimon, looks like it assumes a 765 floppy controller
Does anyone here know where I could find a
"generic" monitor ROM that
could be tweaked for the target system? I'm looking for something that
would fit in a 4K EPROM.
the N8VEM crowd like the Zapple monitor.
23 Jan
23 Jan
11:45 p.m.
On Thu, 23 Jan 2014, Al Kossow wrote:
On 1/23/14 1:20 PM, geneb wrote:
Thanks Al. I checked that out and it looks like it's designed to live at
F000h. The monitor ROM in the S-100 machine I'm working on actually lives
at 0000h. This means that it's either turned off by the boot process, or
the system was never designed to run CP/M. If it is turned off by the
software coming off the boot device, it becomes a more difficult problem
to solve. Not having any schematics, docs, or software makes it very much
an uphill climb.
tnx!
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
Does anyone here know where I could find a
"generic" monitor ROM that could
be tweaked for the target system? I'm looking for something that would fit
in a 4K EPROM.
the N8VEM crowd like the Zapple monitor.
10:59 p.m.
I think Dave Dunfiled has a nice simple (generic) Monitor ROM that he wrote. I believe it
can be found on his web page.
Phil
On Jan 24, 2014, at 6:20 AM, geneb <geneb at deltasoft.com> wrote:
Does anyone here know where I could find a
"generic" monitor ROM that could be tweaked for the target system? I'm
looking for something that would fit in a 4K EPROM.
tnx.
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
11:55 p.m.
On Fri, 24 Jan 2014, Philip Lord wrote:
I think Dave Dunfiled has a nice simple (generic)
Monitor ROM that he
wrote. I believe it can be found on his web page.
Thanks Phil, I'll go look.
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
24 Jan
24 Jan
12:08 a.m.
I use Dave's monitor (he has two versions plus one with BASIC). They're easy to
use and the first thing I do when getting a new system off the ground.
Rich Cini
Sent from my iPhone
On Jan 23, 2014, at 5:59 PM, Philip Lord <philip at
neoncluster.com> wrote:
I think Dave Dunfiled has a nice simple (generic) Monitor ROM that he wrote. I believe it
can be found on his web page.
Phil
On Jan 24, 2014, at 6:20 AM, geneb <geneb at
deltasoft.com> wrote:
Does anyone here know where I could find a "generic" monitor ROM that could be
tweaked for the target system? I'm looking for something that would fit in a 4K
EPROM.
tnx.
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
3:17 p.m.
On Thu, 23 Jan 2014, Rich Cini wrote:
I use Dave's monitor (he has two versions plus one
with BASIC). They're
easy to use and the first thing I do when getting a new system off the
ground.
I haven't been able to find it on his site. :(
g.
--
Proud owner of F-15C 80-0007
http://www.f15sim.com - The only one of its kind.
http://www.diy-cockpits.org/coll - Go Collimated or Go Home.
Some people collect things for a hobby. Geeks collect hobbies.
ScarletDME - The red hot Data Management Environment
A Multi-Value database for the masses, not the classes.
http://scarlet.deltasoft.com - Get it _today_!
