P Gebhardt wrote:
?
Yes, I know what it is. The "Brick" at this board was also described as a
VAX Brick here in the past, So I've asked what was meant..
Regards,
Holm
--
Technik Service u. Handel Tiffe, www.tsht.de, Holm Tiffe,
Freiberger Stra?e 42, 09600 Obersch?na, USt-Id: DE253710583
www.tsht.de, info at tsht.de, Fax +49 3731 74200, Mobil: 0172 8790 741
What do you mean with "VAX-Brick" ?
That one?

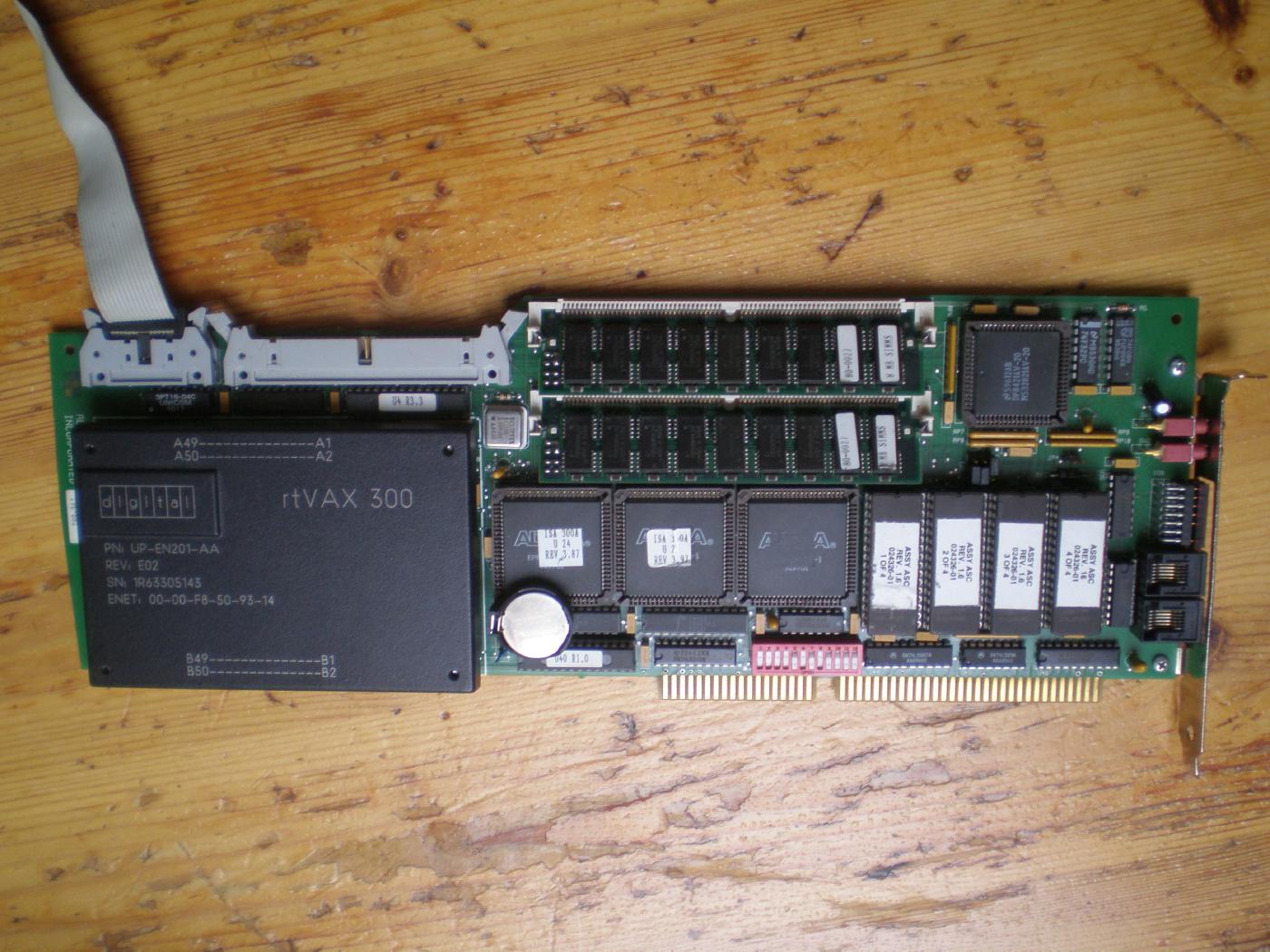

http://www.tiffe.de/Robotron/PDP-VAX/rtVAX300/isa300-1.jpg
Regards,
Holm
The VAXbrick is an update-solution for VAX 3000 and VAX 4000-200 based systems.
There is still some information at HP:
"CPU and memory from pre-upgrade system must be removed.
The VAX 4000-50 Brick is a sealed unit which takes up the CPU and Memory
slots in a MicroVAX 3000 series, VAX 4000-200 system, BA215, BA211,
BA430 or BA431 enclosures. Must have VMS minimum version of 5.5-2h4 or
6.1 or higher, VMS 6.0 not supported."
http://h10025.www1.hp.com/ewfrf/wc/document?cc=de&lc=de&dlc=de&…
The board on your picture displays a unit to be specifically used for realtime
applications and, from my point of view, is thus not meant to be used as an upgrade for
typical "general purpose" vax-based applications. I didn't know rtVAX was
also offered on boards with ISA-interface, though.
Kind regards,
Pierre
