Unknown Z80 CPU board and backplane ID anyone?

Adrian Graham binarydinosaurs at gmail.com
Mon Jul 30 12:27:36 CDT 2018


Hi folks,

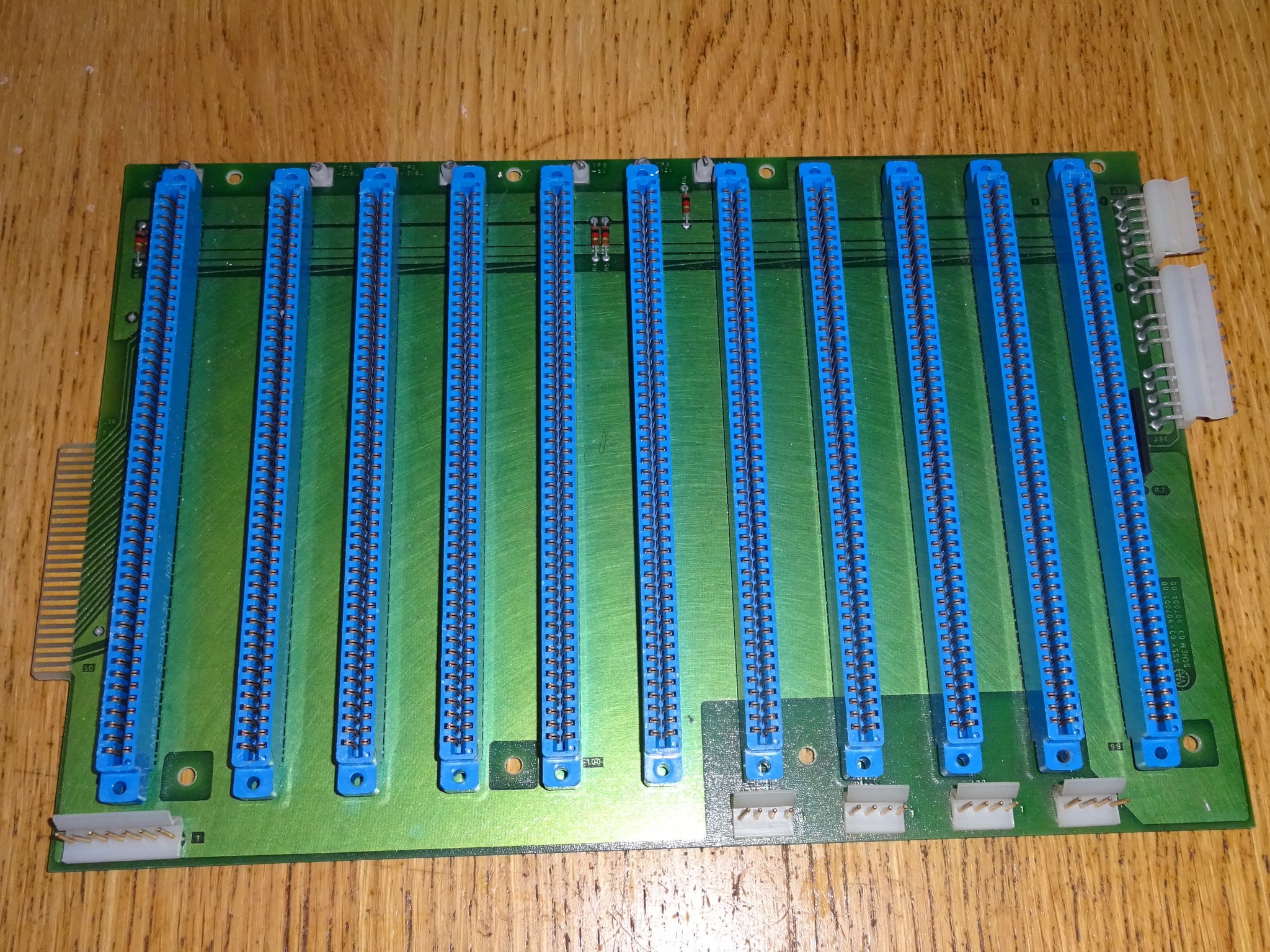

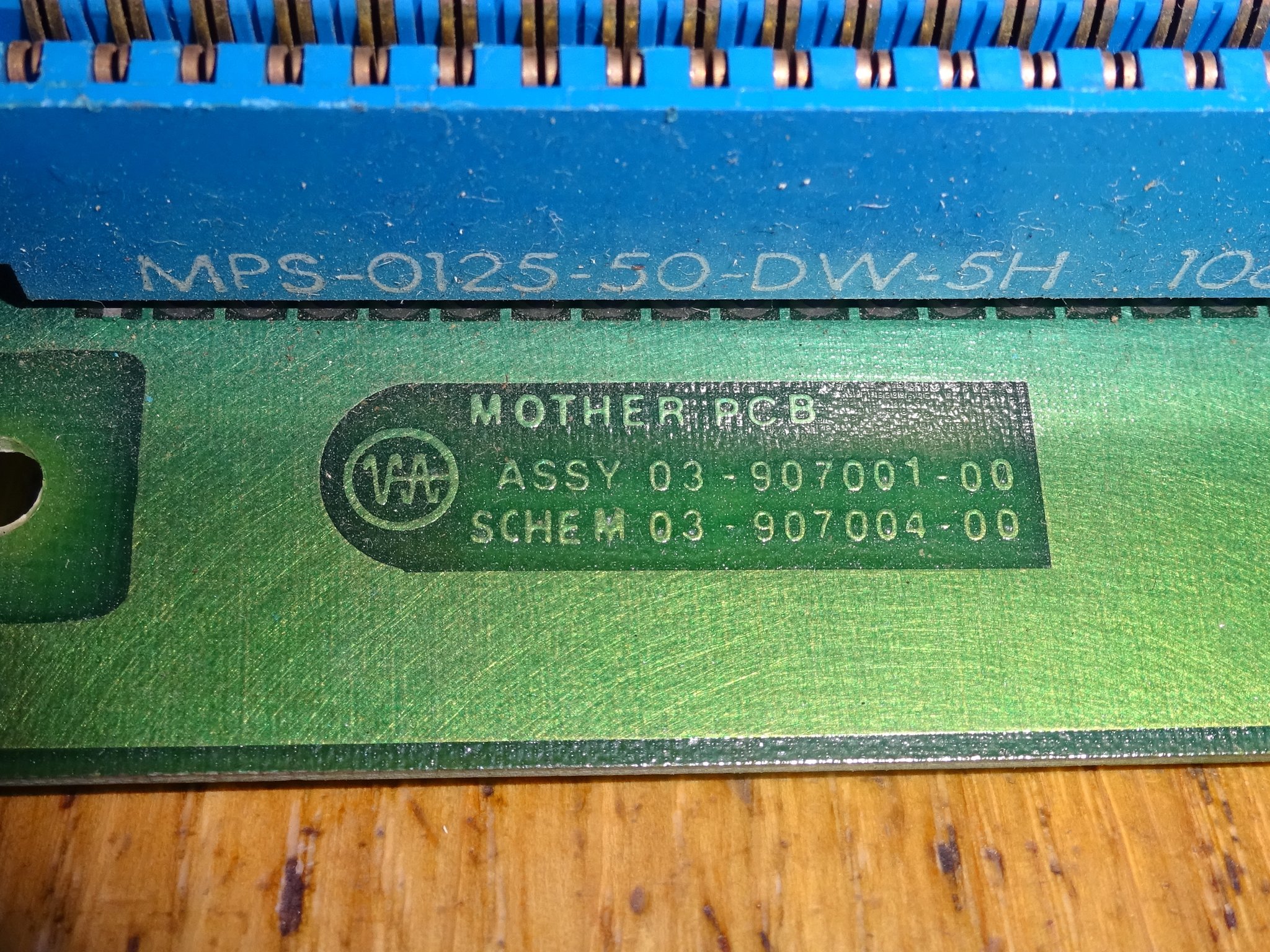

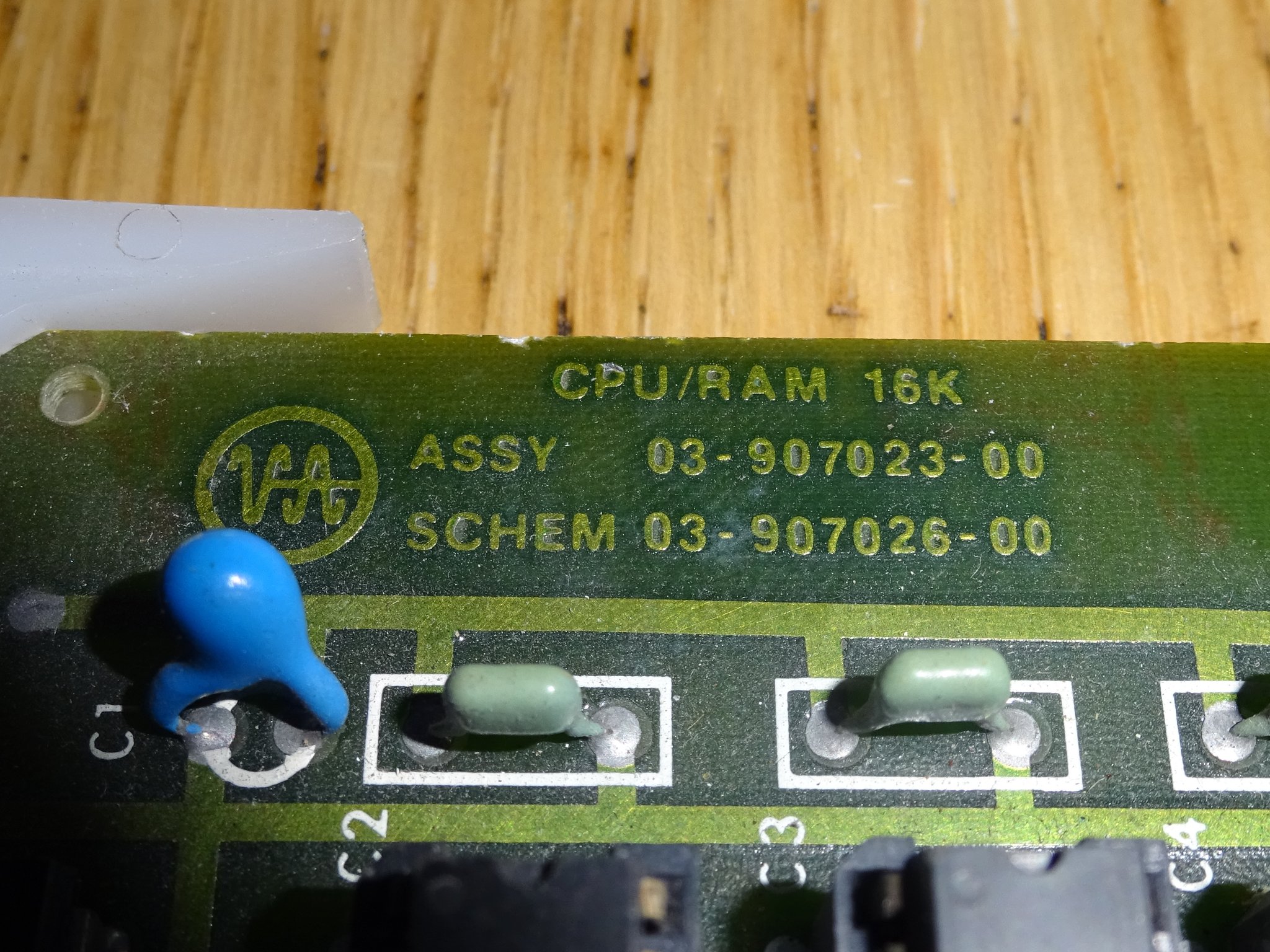

A friend of mine in the UK is looking for any info on the following boards. The CPU board is marked ‘VA 03-907023-00’ and features a Z80 with 16K RAM and an 18.432MHz crystal. The backplane is also VA and has 11 132-pin slots that aren’t all identical implying usage for different cards in those locations. Voltages are +5/-5/+12V.

Pics:

http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30.jpg <http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30.jpg>
http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30-1.jpg <http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30-1.jpg>
http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30-2.jpg <http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30-2.jpg>
http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30-3.jpg <http://www.binarydinosaurs.co.uk/tynemouthsw_2018-Jul-30-3.jpg>

My duckduckgo-fu has let me down.

Cheers!

--
adrian/witchy
