VAX 11/730 quickie

Mike Ross tmfdmike at gmail.com
Fri Feb 19 18:07:18 CST 2016


On Sat, Feb 20, 2016 at 12:22 PM, Mike Ross <tmfdmike at gmail.com> wrote:
> Just started working on mine - been a back-burnered project for a long
> time. Unfortunately all the cables were cut when it was dismantled; I
> was lucky to grab just the CPU.
>
> Got it powered up ok - no drama there. I faked cables to the port on
> the WCS which drives the console and hooked up my trust VT220 at 2400
> baud. Nada. No self-test prompt; no ROM> prompt.
>
> Maybe I've messed up the faked console cable; I'll check - already
> tried obvious things like making sure Rx & Tx were crossed (it's a
> three wire cable according to the schematics - Rx Tx Gnd; no flow
> control). But I'd like to know more about the assorted LEDs on the CPU
> boards; maybe there's a clue there if it's not getting far enough into
> the self-test to display console output. There's a fair few LEDs on
> the M8391. But the doc I've looked through on Bitsavers doesn't seem
> to document their meanings and interpretations. Can anyone help on
> that point?
>
> Hopefully this link works:
> https://www.facebook.com/photo.php?fbid=10208521465663997&l=867897c786

OK apparently link didn't work... here's the pic:

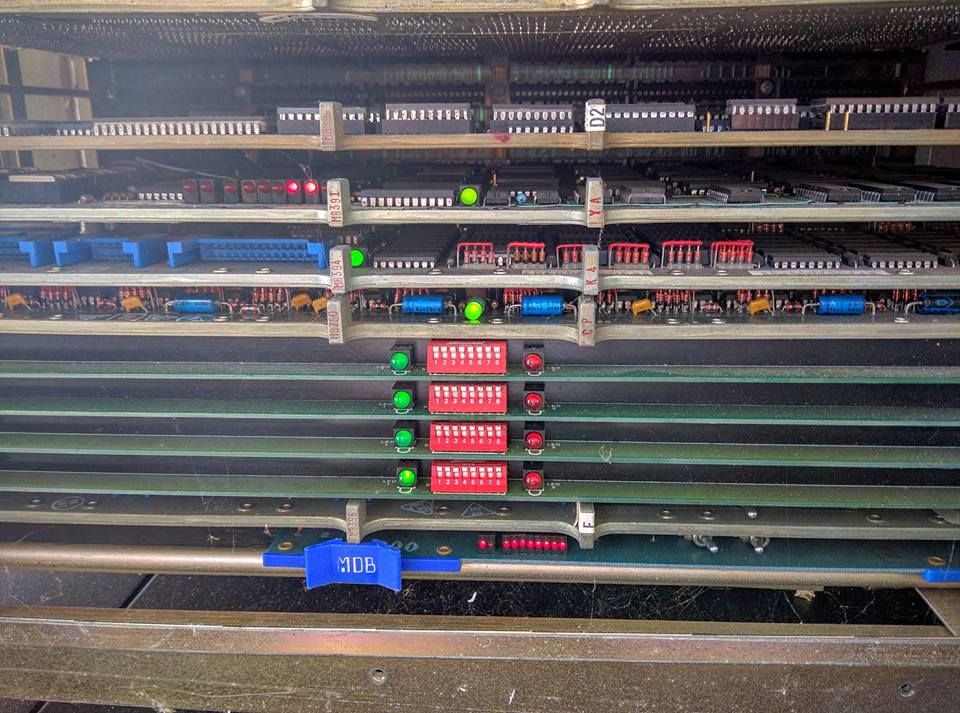

http://www.corestore.org/730boardsLEDs.jpg

See row of red LEDs on M8391? On power-up the leftmost LED lights and
goes out. Then the rightmost two LEDs light and stay on...

Mike
